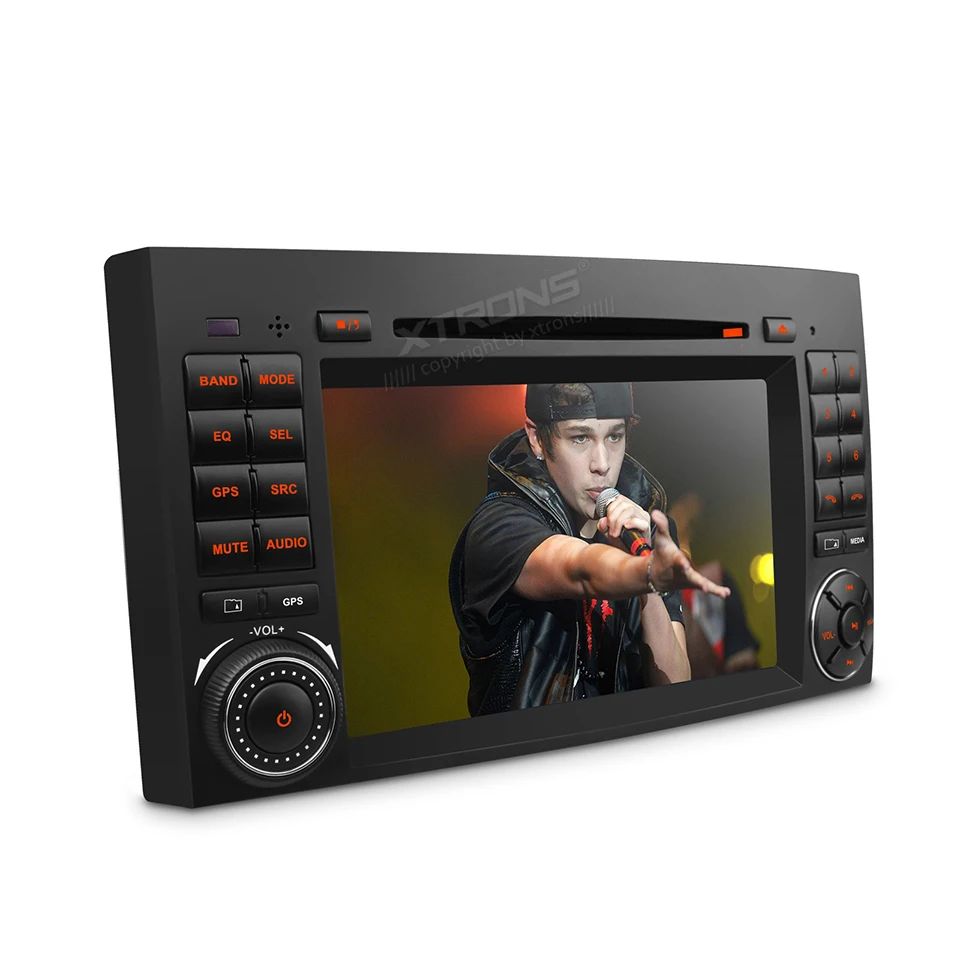

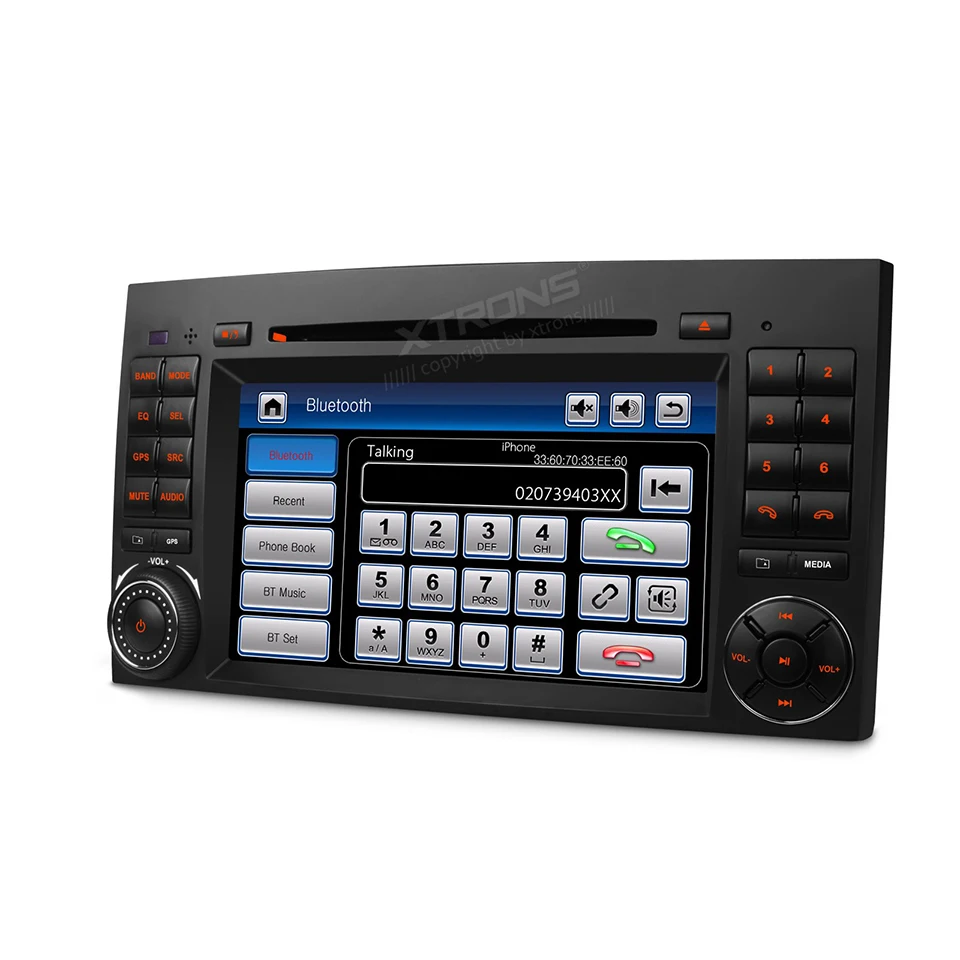

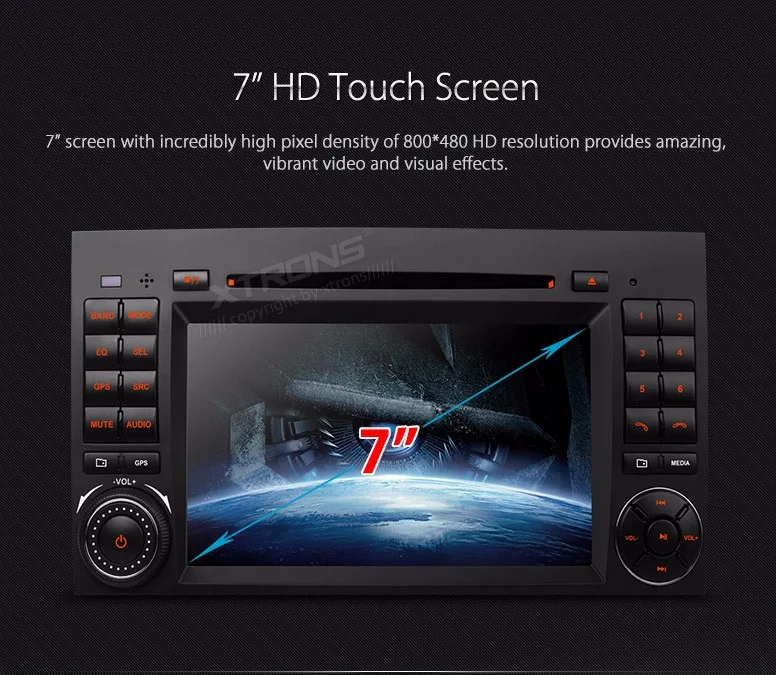

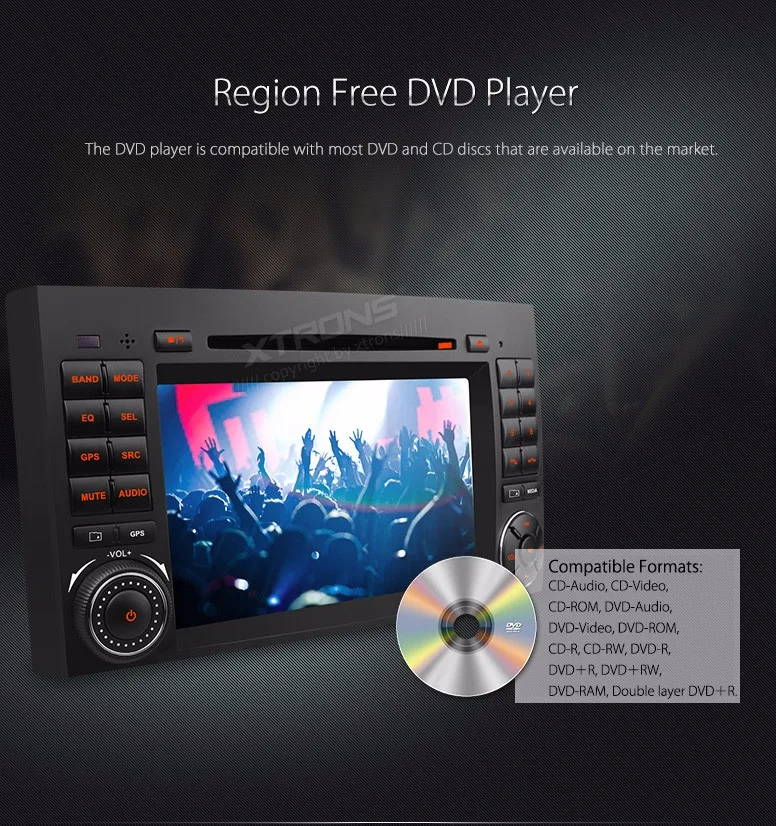

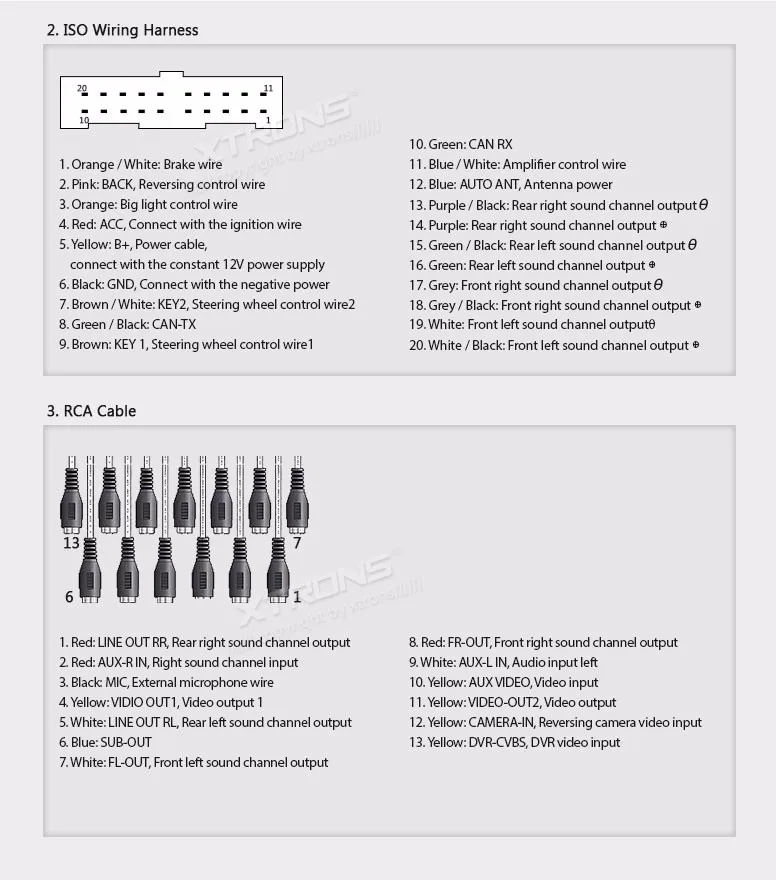

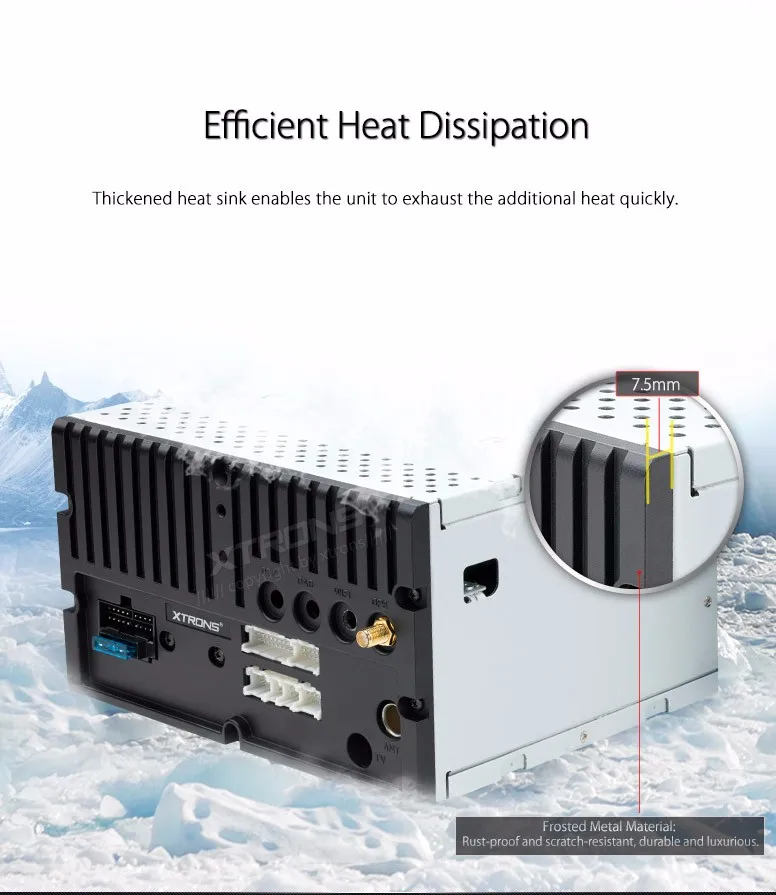

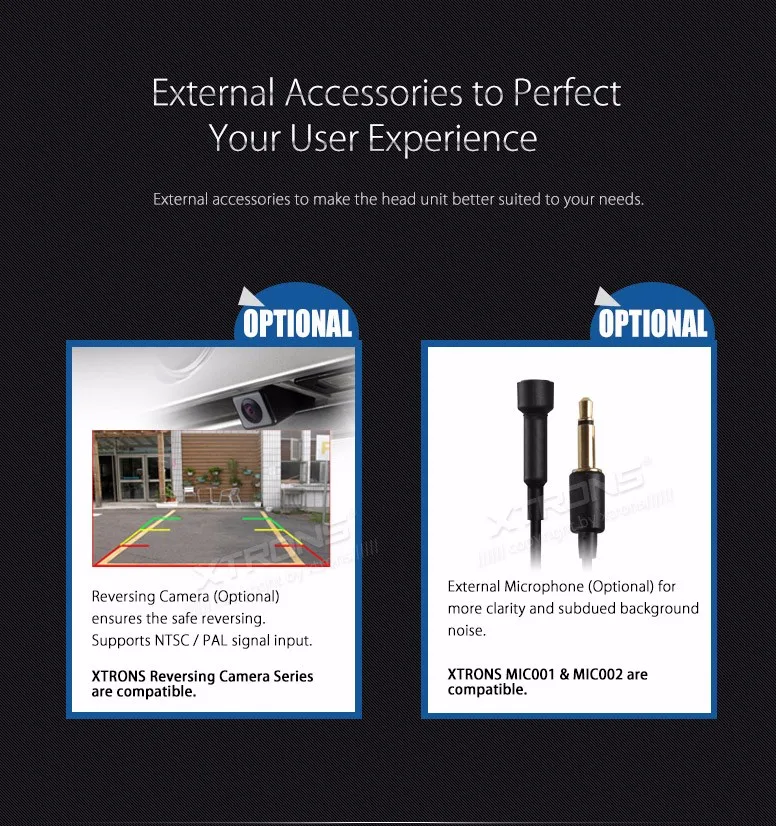

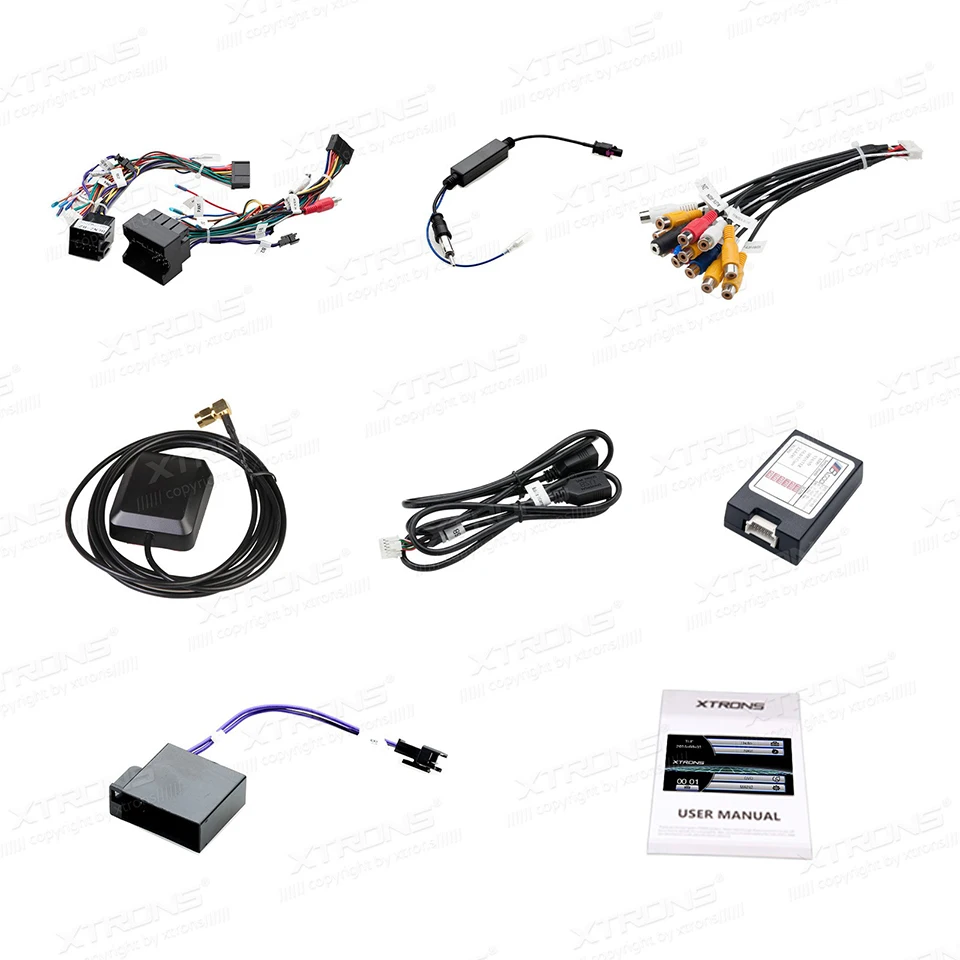

7"Double 2 Din Car Radio DVD GPS Navi For Mercedes-Benz A-W169 B-W246 Viano Vito W639 Sprinter W906 W318 Auto Video Audio Stereo 7"HD Digital Touch Screen Dual CANbus GPS Navigation Car DVD Player With Screen Mirroring Function Custom Fit for Mercedes-Benz *Screen Mirroring Function *Dual CANbus Function *Refreshing User Interface Specially Designed for your *High Transmittance & Anti-dazzle *7"HD Touch Screen *Processor:Cortex A7,CPU:800M *Efficient Heat Dissipation *Phonebook Transfer Contacts information Search *Region Free DVD Player *Optional Accessories to perfect your user Experience Accessories Included: 2 x ISO Wiring Harness 1 x GPS Antenna 1 x Radio Adapter Cable 1 x RCA Cable 1 x USB Cable (Rear) 1 x CANbus Box 2 x Steering Wheel Control Adapter Cable 1 x User Manual 7" HD Digital Touch Screen Dual CANbus GPS Navigator Car DVD Player with Screen Mirroring Function Custom Fit for Mercedes-Benz •At First Sight: Refreshing User Interface Screen Mirroring Function Dual Channel Canbus High Transmittance & Anti-dazzle Touch Screen •Applicable Models & Years Mercedes-Benz A-W169 (2004-2012), B-W245 (2004-2012), Viano / Vito W639 (2006-2012), Sprinter W906 / W209 / W311/ W315/ W318 (2006-2012) Although we have made every effort to ensure this item is compatible with the listed vehicles, please ensure you have the correct shape / style OEM unit before purchasing. *Please be advised if your vehicle has a Fiber Optic sound system, and you want to retain the original sound system of your vehicle, an additional adapter will be required. •Refreshing User Interface Specially Designed for your Mercedes-Benz Vehicles The stylish user interface and classic Mercedes-Benz logo retaining all the unfailing elements Mercedes-Benzhas. Same appearance provides different entertainment solution. •High Transmittance & Anti-dazzle touch screen PF7M245S with high transmittance & anti-dazzle Touch Screen gives you Ultrahigh light transmittance, clear and vivid images. Other aftermarket units with ordinary touch screen have low light transmittance and fuzzy images. •Screen Mirroring Function for Smartphone Entertainment Sharing(Supports Android Smartphone ONLY) With the screen mirroring function, any content from your smart phone can be mirrored onto this head unit. Two-way control of all the Applications from your smart phone, no delay video playback, enjoy exciting games and more on the large display. Note: This function is only applicable with Android smartphones, and the phone should be at least Android 4.0 version and quad core processor, A USB cable can help build the connection, so there is no need to connect via WiFi, Audio files require a Bluetooth connection. •Dual Channel CANbus The Connection between the Car and Head Unit The dual CANbus is designed as a perfect fitting for Mercedes-Benz; it builds a close relationship between this unit and your car. Your car's original function including steering wheel control, headlight, ACC, reversing control, LCD screen can all be remained on this unit. Headlight Control: When the vehicles headlights are on, the buttons of this unit will illuminate while head unit is off. This unit can also switch to night mode when this headlights are on. ACC: The stereo will automatically turn on when you start the ignition. LCD Screen: Your unit's working mode can be displayed on the vehicles' information display. Steering Wheel Control: Take control of your music safely on the move. Reversing Control: The stereo allows automatically switching to the reversing mode without the need for additional wiring. Please come to us for the CANbus box dial switch information. •Quicker & Smoother Now with our powerful 800MHZ Cortex A7 Processor and latest WinCE6.0 system, you can enjoy the fastest running speed than ever. Processor: Cortex A7, CPU: 800M Navigation & Entertainment Faster GPS Navigation(GPS CARDS ARE NOT INCLUDED AND MUST BE PURCHASED SEPARATELY.) Get to your destination quickly and easily. Built-in Dual Zone Play DVD / Radio / Music while navigating. Passengers in the back can also enjoy the entertainment. •Phonebook Transfer, Contacts Information Search Access phonebook, call logs, search contacts information with name or numbers, make hands free calls, display unanswered calls, custom pairing code and listen to Bluetooth music. Hands free calling Search contacts information by name or number Bluetooth music •Efficient Heat Dissipation Thickened heat sink enables the unit to exhaust the additional heat quickly. Frosted Metal Material: Rust-proof and scratch-resistant, durable and luxurious. •7" HD Touch Screen 7" screen with incredibly high pixel density of 800*480 HD resolution provides amazing, vibrant video and visual effects. •Region Free DVD Player The DVD player is compatible with most DVD and CD discs that are available on the market. Compatible Formats: CD-Audio, CD-Video, CD-ROM, DVD-Audio, DVD-Video, DVD-ROM, CD-R, CD-RW, DVD-R, DVD+R, DVD+RW, DVD-RAM, Double layer DVD+R •External Accessories to Perfect Your User Experience External accessories to make the head unit better suited to your needs. 1. External Microphone (Optional) for more clarity and subdued background noise. (XTRONS MIC001 & MIC002 are compatible) 2. Reversing Camera (Optional) ensures the safe reversing. Supports NTSC / PAL signal input XTRONS Reversing Camera Series are compatible •Other Features that Enrich your In-Car Entertainment 1. Built-in Radio Tuner (RDS Enabled) (18 FM and 12 AM stations Preset) 2. Built-in USB & SD Slot 32GB (the max files in the USB & SD card should be within 4GB) 3. AUX IN & AV OUT Supports System: NTSC, PAL 4. 4 *45W Pop, Rock, Jazz, Classic, Customize, Cinema, Soft, Heavy Metal, Standard 5. Button Light Orange 6. Supports Multiple Languages Simplified Chinese, English, Traditional Chinese, Hebrew, Russian, Italian, German, French, Spanish, Portuguese, Arabic and Japanese. •Size: Head Unit: 150*179*100mm Face Panel: 247*131*40mm •Accessories: 2 x ISO Wiring Harness 1 xGPS Antenna 1 x Radio Adapter Cable 1 x RCA Cable 1 x USB Cable (Rear) 1 x CANbus Box 2 x Steering Wheel Control Adapter Cable 1 x User Manual •Wiring Diagram: ISO Wiring Harness RCA Cable Orange / White: Brake wire Red: LINE OUT RR, Rear right sound channel output Pink: BACK, Reversing control wire Red: AUX-R IN, Right sound channel input Orange: Big light control wire Yellow: VIDIO OUT1, Video output 1 Red: ACC, Connect with the ignition wire Black: MIC, External microphone wire Yellow: B+, Power cable, connect with the constant 12V power supply White: LINE OUT RL, Rear left sound channel output Black: GND, Connect with the negative power Blue: SUB-OUT Brown / White: KEY2, Steering wheel control wire2 White: FL-OUT, Front left sound channel output Green / Black: CAN-TX Red: FR-OUT, Front right sound channel output Brown: KEY 1, Steering wheel control wire1 White: AUX-L IN, Audio input left Green: CAN RX Yellow: AUX VIDEO, Video input Blue / White: Amplifier control wire Yellow: VIDEO-OUT2, Video output 2 Blue: AUTO ANT, Antenna power Yellow: CAMERA-IN, Reversing camera video input Purple / Black: Rear right sound channel outputθ - Yellow: DVR-CVBS, DVR video input Purple: Rear right sound channel output⊕ Green / Black: Rear left sound channel outputθ Green: Rear left sound channel output⊕ Grey: Front right sound channel outputθ Grey / Black: Front right sound channel output⊕ White: Front left sound channel outputθ White / Black: Front left sound channel output⊕
